60cm x 90cm 6090 Digital Flatbed Cutter and Plotter

Ver imagen más grande y otras vistas (con zoom)

60cm x 90cm 6090 Digital Flatbed Cutter and Plotter

Codigo del articulo:SIT-KX-FC6090

Precio Unitario : $ 3,091/pc (Aviso de Descuento) (Tiempo entrega 50-70 días)

Por Favor Eliga el Tipo

40*60cm 60*90cm 90*120cm

Cantidad: pc(s) Costo Total :
USD $3,091
Peso de Envio: 462.0lb (210kg) Flete
item añadido al carro

0 total en su carro, Total del carrito: $

El vendedor asume toda la responsabilidad de este listado

Envío y manipulación

Cantidad: Pais:

1.Si opta por enviar por expreso, se puede ver que el honorario del envío es un poco alto, pero puede entregar a su puerta dentro de 3-5 días, sólo tiene que hacer el pago y esperar.
2.Si opta por enviar por mar, la tarifa de envío es más bajo, y hay que ir a los puertos para que el liquidación en la Aduana, y tomar la mercancía desde el puerto hasta su casa por sí mismo. Generalmente se toma from10 a 30 días, dependiendo de la dirección del destinatario.

Tiempo de Manejo

Enviará generalmente dentro de 3 días hábiles después de recibir el pago aprobado.

Enviar de Donde?

Tenemos 4 almacenes en el extranjero en todo el mundo que ahora incluye: Rusia, EE.UU., Brasil y México. y Estamos creando otro en Europa. Normalmente, enviaremos su pedido desde el almacén más cercano a usted. si las existencias cerca de usted están agotadas, le enviaremos su pedido a usted directamente de China.

política de devolución

Las compras pueden devolverse en las siguientes condiciones :: 1)Hay problemas de calidad después de abrir el paquete.; 2) Los productos son diferentes que en la lista de pedidos.; 3)Los productos se dañaron irreparablemente durante el transporte.

Detalles del pago

Forma de pago

1.PayPal (pagos en línea)
2.Tarjeta de crédito
3.Transferencia bancaria(T / T)
4.Western Union pago en línea / fuera de línea

Historial De Transacciones

Transacciones:

Features:

• Dual cutting head, perforated cutting, half cutting and creasing in one compact unit.

• Servo drivers control. Silent, precise and powerful servo drives for best cutting results.

• No cutting dies required, it can avoid the customer's constant modifications in designs which cause cost in sampling or proofing.

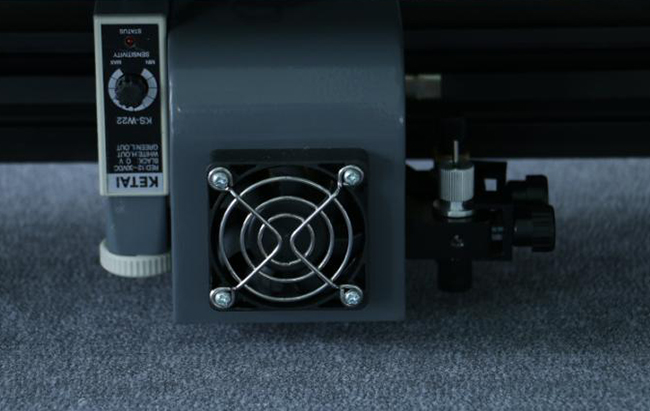

• Red light positioning, automatic patrol edge, can automatically scan points in cutting different shapes of designs, high precision, the real effects cut out same as the bit molded products.

• Comes with DragonCut Software, which reduces media waste and processing time. Compatible with a variety of different software, different computer operating systems, supporting independent research and development of dragon cutting software, unique contour recognition technology for JPG, PNG, BMP and other image format files without contouring operation but can accurate extraction with one-click generation of contours.

Suitable for cardboard, PVC, spray film, and a variety of flexible materials

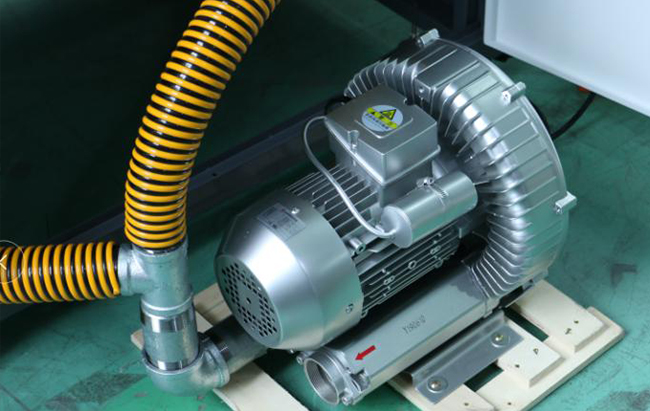

• Pneumatic vacuum suction of media. With usage of the vacuum adsorption technology to firmly hold the medium and cut it more stably, and the paper doesn’t run around.

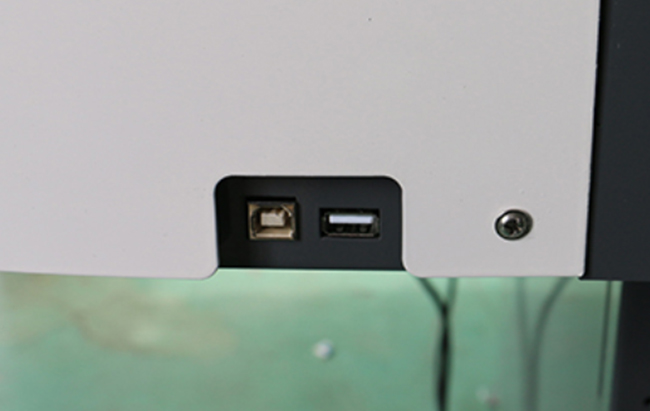

• Direct USB makes the flat bed cutter reliable and convenient. Plug and play, simple installation, no additional drivers needed.

• The linear guide of the flat bed cutter ensures high speed and few errors.

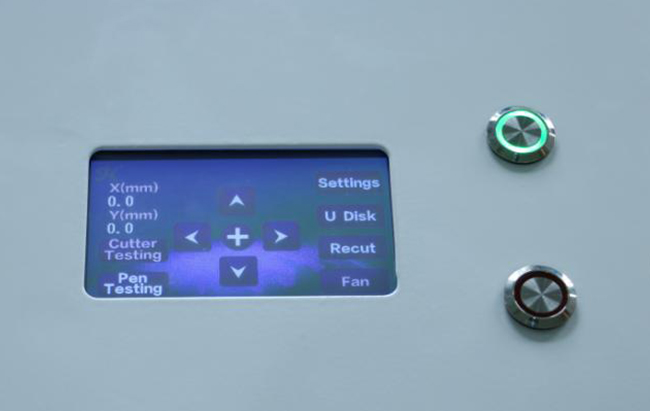

• The flat bed cutter has an LCD touch screen in English.

• Contour cutter cuts thin films and card up to 500gsm / 600micron. Cutting speed pressure can be adjusted as needed.

• Cuts typical SRA3 sheet in 30-60 seconds.

• Maximum cutting thickness is 1.3mm (0.05in)

• Fast speed: 10 seconds automatic positioning, one image can be completed in a few minutes, the machine is workable in 24 hours operation, possible for small volume production and no need of cutting die.

Comparing with the laser cutting machine, it doesn’t make black edges on cutting material, no burnt on thin cutting material, during working time there is no glare light as well as no smells.

Specification:

Model	SIT-KX-FC6090
Mainboard	32-bit CPU, 4Mb cache memory
Control panel	4.3 inches touch screen
Driver	Stepper motor
Flatbed size	600*900mm
Max. cutting speed	800mm/s
Max. cutting force	1200g
Max. cutting thickness	1mm
Interface	USB + U disk
Carriage	Single position carriage
Positioning	Color sensor, automatic positioning
Mechanical resolution	0.0254mm/step
Repeatability	0.127mm
Type of tool	Cemented carbide blade
Plotting pen type	all types diameter 11.4mm plotter pen
Plotting instruction	DMPL / HPGL automatic identification
Power supply	AC220V 50HZ
Operating enviroment	Temperature:+5℃ to +35℃, relative temperature 30%-70%
Operating language	English
Operating system	Windows XP,Vista,Windows7/Windows8/Windows10

Details:

Why do we need this Flatbed Cutting Plotter?

A. Some customers like to cut hard or thick medias, like PVC, reflective film, abrasive paper, hard paper, magnetic paper, PET, etc.

B. As we know, vinyl cutting plotter can not cut off media, to avoid cutting the mat. However, when some media need to be cut off in some cases, a flatbed cutter is necessary.

C. To cut soft media, which can not be realized by a cutting plotter, a flatbed cutter is a good choice.

Application:

Cuts cardboard, Kraft paper, plastic board, fibrous cardboard, rubber sheet and marking film etc.

Application Field:

Prototype and light production, on - demand packaging and sheet card cutting system - also suitable for sheet labels.

Process Material:

cardboard, craft paper, plastic board, fibrous cardboard, rubber sheet and thin film etc.

PVC: Less than 0.4mm (0.0157in)

reflective film: All types

Sandblast, Hard paper: Less than 450gsm

Magnetic Sticker: Less than 600micron

PET: Less than 0.3mm (0.0118in), vinyl, etc.

Process:

Certificate:
